Data-Link 2400 & 5800 Mhz


MAG - 5G 5,2- 5,8 GHz (802.11a) Wireless Data Link

5 GHZ DATA LINK

Product Features:

  • Supports 802.11a networks
  • Wireless link speeds up to 54Mbps
  • MAC address Filtering and enhanced 152-bit WEP Encryption
  • Wi-Fi Protected Access
  • Web-based management and easy setup
  • Chipset ATHEROS


Product Description:

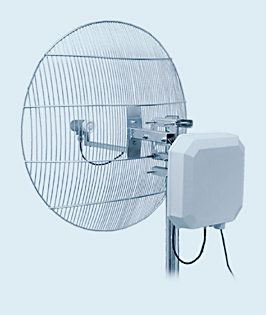

The Outdoor Unit MAG-5G is a wireless device for outdoor mounting next to an external antenna, operating in the 5,2 to 5,8 GHz band. It can be used at access points and at client locations. Typical uses are to power access point antennas, make backbones between access points, or to connect customers to the network. Signal and power are supplied conveniently through Ethernet cable using included Power-Over-Ethernet power supply. Configuring this device is very easy by web browser (Internet Explorer 5.5 or higher) or by telnet. It uses a TCP/IP protocol base. The radio components work in the 5,2 to 5,8 GHz and 2,4 GHz band, and are compatible with the IEEE 802.11a standard. Supported operating modes are AP, AP Client, or Bridge.


Specifications

INTERFACE

Ethernet LAN: One 10/100Base-T Ethernet switch port (auto sensing) LED Indicators: LED x4: Power, LAN, 11a link/Act Reset Button: Reset to default setting (hold the reset button after 6 sec)

RADIO CHARACTERISTICS

  • Standard: IEEE 802.11a for WLAN
  • Frequency Bands: 802.11a : UNI-Band 5.15~5.35GHz UNI-Band 5.47~5.725GHz
  • Modulation Tech: 802.11a: OFDM
  • Media Access Protocol: CSMA/CA with ACK
  • Transmit Power: 802.11a: Max 16dBm@16QAM R3/4
  • Connector type: SMA (reverse polarity)
  • Receive Sensitivity: 802.11a: 6Mbps 10-5 BER @ -91dBm; 54Mbps 10-5BER @ -72dBm; 108Mbps 10-5BER @ -69dBm
  • Data Rates: 802.11a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
  • Operating Range: 802.11a: up to 20Km with 27dbi
    grid dish antenna.

    SOFTWARE FEATURES

  • Protocol Support: TCP/IP, IPX, NetBEUI
  • Management: Built-in HTTP Server for setup and remote management via any browser
  • Security: Up to 64bit/128/152-bit WEP & WPA, 802.1x Radius Client MAC address filtering
  • Operating mode: AP, AP Client, Repeater, P2P & P2MP Bridge

    ENVIROMENTAL SPECIFICATIONS

  • Dimension: 250x250x70mm
  • Weight: 1,2Kg
  • Temperature: 0°C to 40°C(Operating), -20°C to 70°C(storing)
  • Humidity: 95% Non-condensing

    POWER SUPPLY

  • Input: AC 100~214V, 0.5A
  • Output: DC 5V, 2.5A POE

    CERTIFICATION FCC class B; CE Mark

    Specifications

    Outdoor Unit MAG-5G Outdoor Unit MAG-5G (PDF 83KB).
