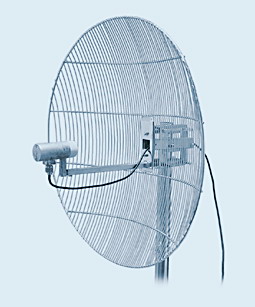

Parapolic Grid Antenna 24/27dbi 5100-6000 Mhz
| Τεχνικά χαρακτηριστικά |
| Frequency: |
5100-6000 Mhz |
| Input impedance: |
50 Ohm |
| VSWR: |
1.3:1 |
| Input level: |
50 Watt |
| Connector type: |
N type (F)or(M) |
| Gain: |
24/27dBi on model |
| Polarization: |
Horizontal or Vertical |
| Front to Back ratio: |
22dB |
| Horizontal Angle: |
9 deg-3dB |
| Vertical Angle: |
9 deg-3dB |
| Dimensions: |
525 x 450 x 450 mm 24dbi
525 x 650 x 650 mm 27dbi
|
|
|
|
|
