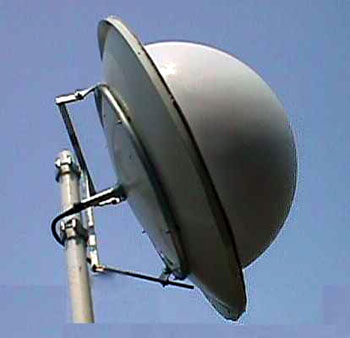

P120 Parabolic Antenna
| ELECTRICAL CHARACTERISTICS OF 1.2 m PARABOLIC ANTENNA |
| RADIATOR |
PF-1 |
PF-2 |
PF-3 |
PF-4 |
| Frequency (MHz) |
950-1150 |
1150-1300 |
1250-1550 |
1550-1850 |
| Polarizations |
1 |
| Radiation angle |
115° |
| Connector |
N (F) |
| VSWR in band |
<=1,2 |
| Return loss |
>=18db |
| Gain in band |
19dB |
20dB |
21dB |
22dB |
| Cross-polarization attenuation |
18dB |
19dB |
20dB |
| |
| RADIATOR |
PF-5 |
PF-6 |
PF-7 |
PF-8 |
| Frequency (MHz) |
1850-2100 |
2000-2450 |
2300-2650 |
2650-3250 |
| Polarizations |
1 |
| Radiation angle |
115° |
| Connector |
N (F) |
| VSWR in band |
<=1,2 |
| Return loss |
>=18db |
| Gain in band |
23dB |
24dB |
26dB |
27dB |
| Cross-polarization attenuation |
21dB |
22dB |
30dB |
MECHANICAL CHARACTERISTICS OF ANTENNAS WITH
MICROMETRICAL VERTICAL ADJUSTING AND HORIZONTAL
ON THE POLE ADJUSTING
- TYPE P120 Diameter (mm) 1200
- Aluminium parabolic antenna thickness (mm) 2
- Brackets for fastening to the pole (mm) 60 - 90
- Distance between the two brackets (mm) 350
- Setting of bearings on the horizontal plane (on the pole)
- Setting of vertical bearings ± 30°
- Max. surface facing the wind (mq.) 1,15
- Endurance against the wind (Km/h) 120
- Weight of parabolic antenna complete with supports (Kg) 17
|
|
|
|
