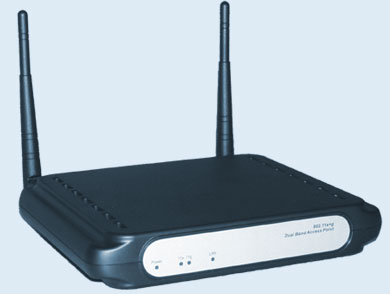

WX 7800A 5,5 and 2.4GHz (802.11a/b/g) Wireless Access Point
Product Features:
- Supports all 802.11a, 802.11b and 802.11g networks
- Wireless link speeds up to 108Mbps
- MAC address Filtering and enhanced 152-bit WEP Encryption
- Wi-Fi Protected Access
- Web-based management and easy setup
Product Description:
WX-7800A Wireless 11a+g Dual-Band Access Point can be accessed in all three 802.11 wireless networks.
WX-7800A contains two separate wireless connectivity radio transceivers, which support all three popular wireless networking specifications.
One of the two transceivers uses 2.4GHz frequency band and supports both wireless 802.11b and 802.11g, which offers up to 11Mbps and 108Mbps data rate respectively.
The other transceiver uses 5GHz frequency band and supports wireless 802.11a, also at 54Mbps.
Since two radio waves operate in different frequency bands, they can work simultaneously and cover your wireless zone with high-speed performance. In terms of security,
WX-7800A offers up to 152-bit WEP Encryption. It also includes the MAC address filtering, which allows you to assign the Internet Access to those you want to.
The configuration and installation is made to be simple and fast following the web browser-based setup wizard.
INTERFACE
Ethernet LAN: One 10/100Base-T Ethernet switch port (auto sensing)
LED Indicators: LED x4: Power, LAN, 11a link/Act, 11g link/Act
Antenna: 802.11a: 2dBi (Peak Gain), 802.11b/g: 2dBi (Peak Gain)
Reset Button: Reset to default setting (hold the reset button after 6 sec)
RADIO CHARACTERISTICS
Standard: IEEE 802.11a 802.11b and 802.11g for WLAN
Frequency Bands: 802.11a :
UNI-Band 5.15~5.35GHz
UNI-Band 5.47~5.725GHz
802.11b/g :
ISM-Band 2.412~ 2.4835GHz
Modulation Tech: 802.11a/g: OFDM 802.11b: CCK,DQPSK, DBPSK
Media Access Protocol: CSMA/CA with ACK
Transmit Power: 802.11a: Max 16dBm@16QAM R3/4
802.11g: Typ. 16dBm@Normal Temp Range
802.11b: Typ. 18dBm@Normal Temp Range
Receive Sensitivity: 802.11a: 6Mbps 10-5 BER @ -91dBm; 54Mbps 10-5BER @ -72dBm; 108Mbps 10-5BER @ -69dBm
802.11g: 11 Mbps 10-5 BER @ -85dBm; 54 Mbps 10-5 BER @ -72dBm;
108Mbps 10-5BER @ -69dBm
Data Rates: 802.11b: 11Mbps, 5.5Mbps, 2Mbps, 1Mbps, auto fallback
802.11g & 802.11a: 108, 54, 48, 36, 24, 18, 12, 9, 6 Mbps
Operating Range: 802.11b: up to 300m (Outdoor), 35-60m (Indoor)
802.11g: up to 50m (Outdoor), 20m (Indoor)
802.11a: up to 300m (open space), 100m (indoor)
SOFTWARE FEATURES
Protocol Support: TCP/IP, IPX, NetBEUI
Management: Built-in HTTP Server for setup and remote management via any browser
Security: Up to 64bit/128/152-bit WEP & WPA, 802.1x Radius Client MAC address filtering
Operating mode: AP, AP Client, Repeater, P2P & P2MP Bridge
ENVIROMENTAL SPECIFICATIONS
Dimension: 195x160x27mm (LxWxH)
Weight: 700g
Temperature: 0°C to 40°C(Operating), -20°C to 70°C(storing)
Humidity: 95% Non-condensing
POWER SUPPLY
Input: AC 100~214V, 0.5A
Output: DC 5V, 2.5A
CERTIFICATION FCC class B; CE Mark
|
|
|
